Twestions About SB2 Horsepower/Torque/Reliability

KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443
The Hunt The Front DLM bunch bought a SB2. Apparently there is an updated version called SB2.2 also. The OG SB2 was a Nascar 358 cu. in.. Now it's widely available as 440 cu. in. They bought a 440. Lots of whining on their YouTube channel by the haters about the SB2 not being any better than their 12 year old Draime which they hurt at Eldora. It dyno'd last rebuild @856HP. Not 100% certain what size the Draime is but think 430.

Seen drag racing versions of 440 SB2.2 for $20K NEW with 920-950HP. The Drag motors ARE running 15/1 comp ratio to get that. Right at 1" of valve lift!!! Can't imagine that would last long in round track racing.

Just looking for info about these. Haven't really found much data for OG SB2 at larger displacement. What I did find said it was strictly a high-RPM engine that lacked torque. Thing is, on dirt, not sure that's a deal breaker. Hard to hook-up torque monsters. If mods feel the need can move to Short Track/Dirt Late Model Section.


KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443
Something like this is interesting. Guy in the comments seems to know his stuff.



KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443

bobsracing34

1 month ago
You may find that the SB2 with it's large volume intake runners makes it difficult to get up to speed on restarts. They are great for top end horsepower but a little boggy out of the hole. Once the power & torque come in it's easy to blow the tires off. We struggled with the "big headed" motors in our modified for a year or two using some old NASCAR stuff and finally went to a Mullins and it made all the difference in the world. Good luck


KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443
Smaller intake port heads move the power down in RPM range. Interesting.



Formerjackman

Team Owner
Joined
Aug 15, 2017
Messages
4,502
Points
593
The original SB2 used the same standard configuration small block engine block as was used on the 23 degree and 18 degree NASCAR engines, and used a weird offset valvetrain setup to accommodate the location of the valves in the SB2 cylinder head. The SB2.2 introduced a new block specially configured to more perfectly match the cylinder heads. The lifter bore locations were relocated, and I BELIEVE that the Chevy supplied blocks came with the larger cam bore opening to accommodate the larger diameter camshaft core and set up for the roller cam bearings. Previously the engine builders had to do all that work themselves.

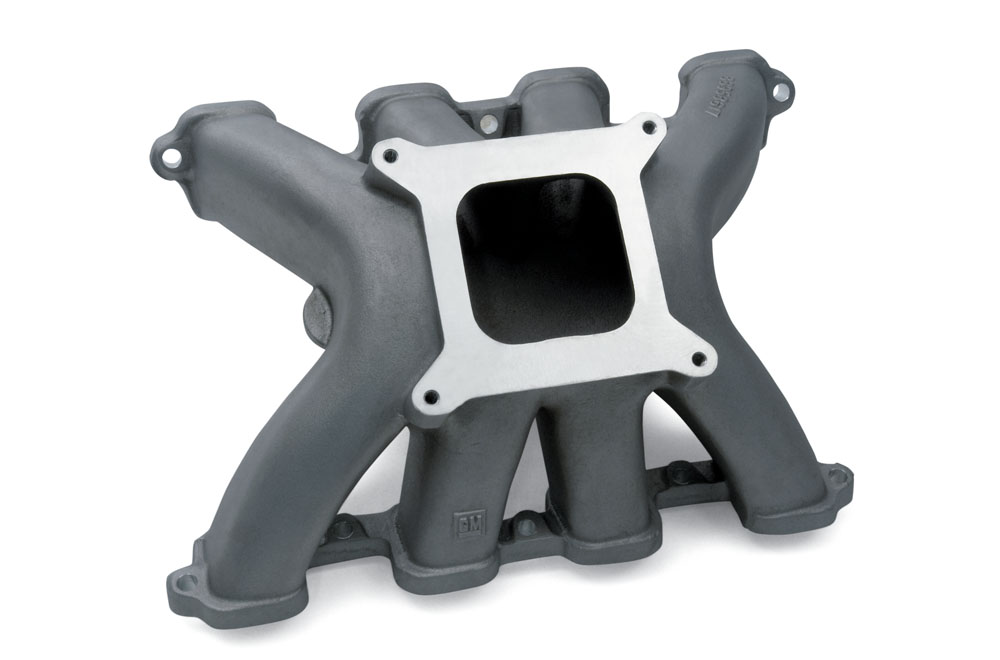

I also BELIEVE that the SB 2.2 came from Chevy already configured for the separate valley tray, meaning that unlike the classic SBC, the intake spider was just that, and didn't seal the top of the block, carry any coolant or contain the distributor. I'm hazy on the details now, but I know there were other ongoing improvements that went into the SB2.2 block. One of the goals that Chevy pursued was to try to supply blocks and heads that required less reworking by the engine builders to get them in race ready condition. The SB2.2 started that, and the R07 carried that on. The R07 incorporated thing like piston coolers in the design so the engine builders didn't have to, and reduced the number of external water lines and such. The actually castings also come much closer to final configuration, and less metal has to be removed.


KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443
^^^nice^^^!!!

When the restrictor plates were added the info about engines just about disappeared. everything became secret. I'll look at the HTF engine and see if it's 2.2. I'd hope so.


KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443

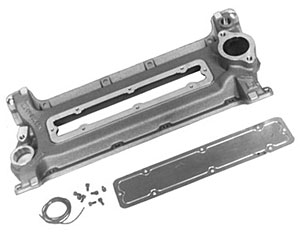

Engine shows up at 12:13. Gonna have to do some searching to see how the intake/valley pan deal looks on 2.2.


KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443
From what I kind find GM didn't produce an Aluminum SB2 block. So everything in/on this engine is likely aftermarket. Looks like SB2.2 to me?


Formerjackman

Team Owner
Joined
Aug 15, 2017
Messages
4,502
Points
593
I have to admit that I didn't even realize that GM was still offering parts for these engines. I thought everything that was out there was just leftover NASCAR stuff and maybe a small amount of aftermarket stuff. You are correct that GM never offered an aluminum block, because the engine was strictly marketed as a NASCAR engine, and aluminum blocks are not allowed.

I know at the time these engines were on the market, a FEW sportsman drag racers were using them, but basically they either had to make the NASCAR parts work for them, or build their own stuff. I also know a few people that had less radical camshafts ground for them and made hot rod engines out of them, but from I saw, even used, the parts were terribly expensive. In an era when you can make 800 naturally aspirated horsepower on pump gas with a LS based engine, I'm surprised people are still trying to make this old iron work.


KTMLew01

Team Owner
Joined
Jan 31, 2017
Messages
4,323
Points
443
Semi-related info. The bottom end and valve train are much more similar to the SB2.2 than I expected.
